Description
Provide Greater Flexibility to Your Solar System

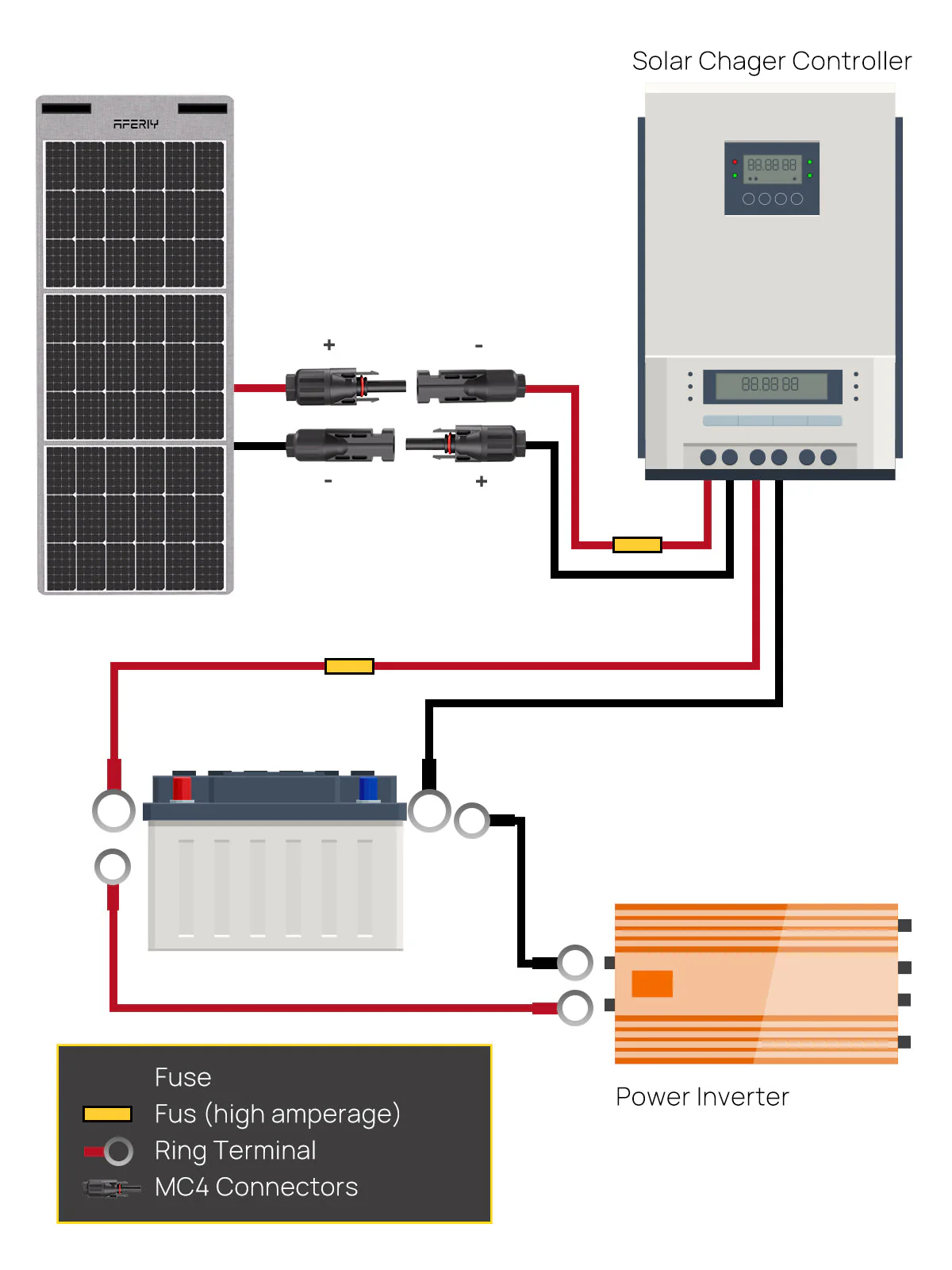

The solar panel extension cable with MC4 connector can extend the distance between your solar panels and power station, providing greater flexibility in panel placement, such as house roofs, recreation vehicles, caravans, and yachts.
Easy to Install

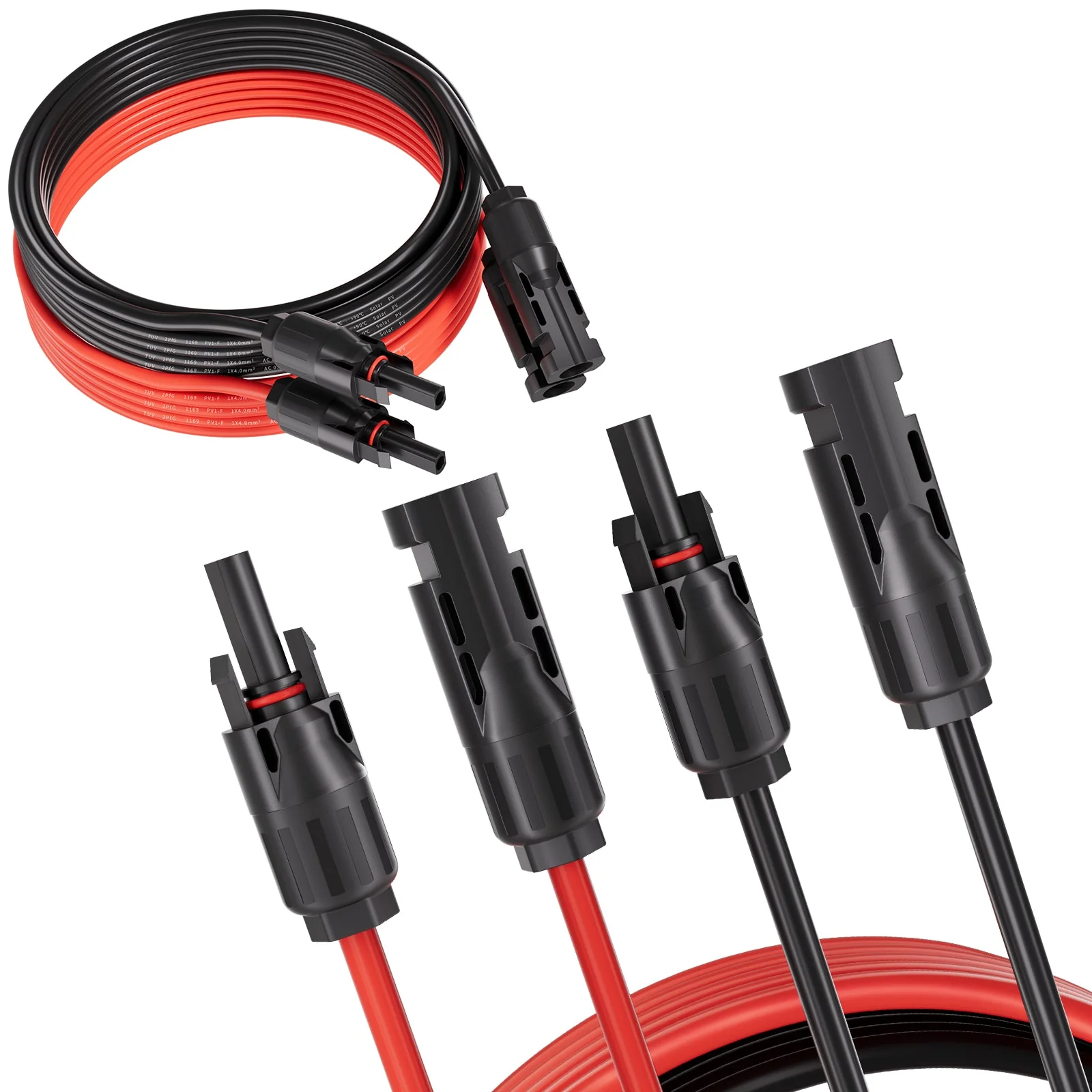

Our solar panel extension cables come with female and male connectors and can be used without the need to install the cables and plug yourself.
Quality Solar Panel Extension Cable
The solar panel extension cable is made of tinned conductive copper material to ensure good electrical conductivity and the solar connector shell is made of PP insulating material with excellent anti-ageing and UV resistance.

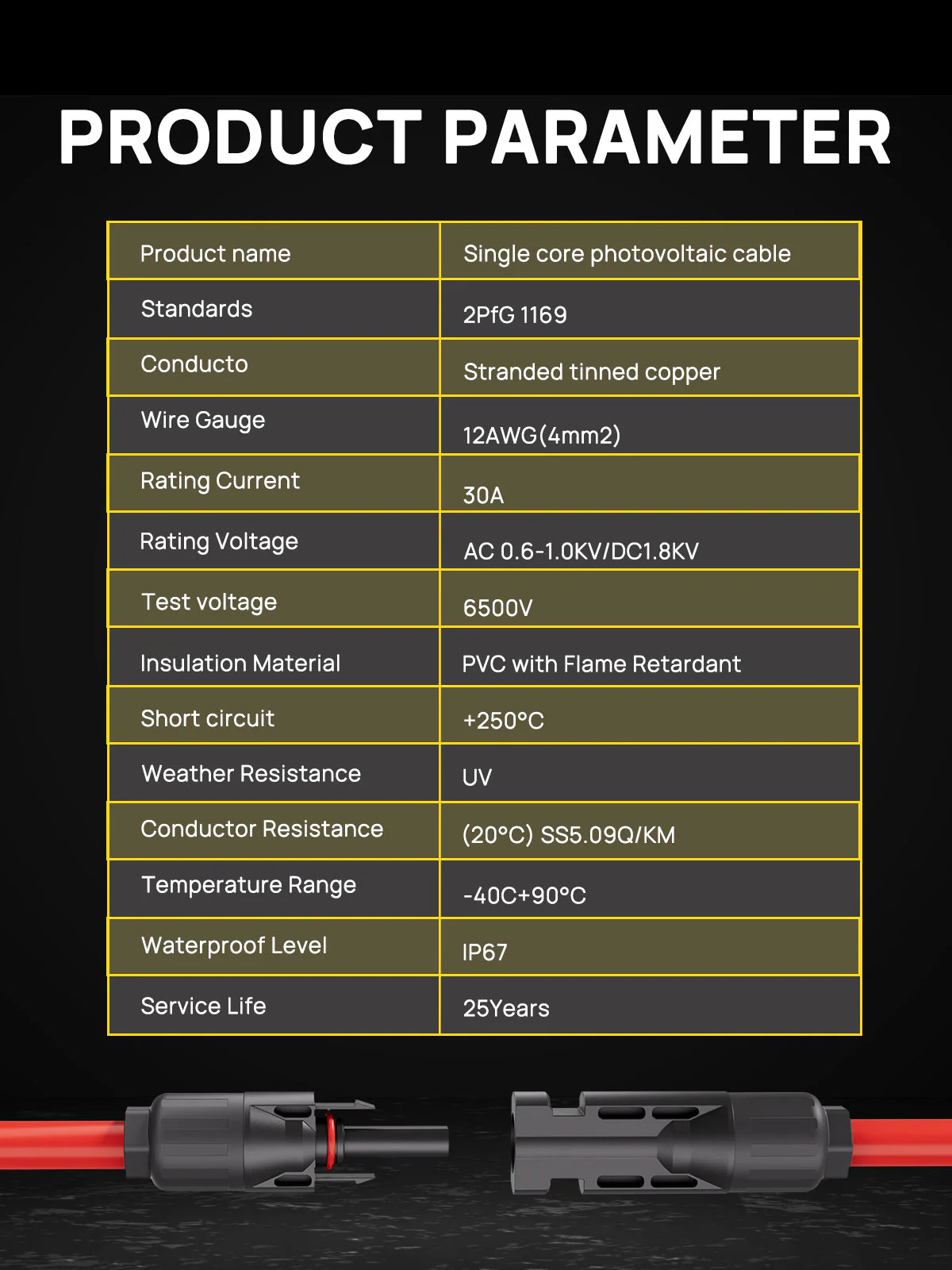

Specifications
| Product Name | Single Core Photovoltaic Cable |
| Standards | 2PfG 1169 |

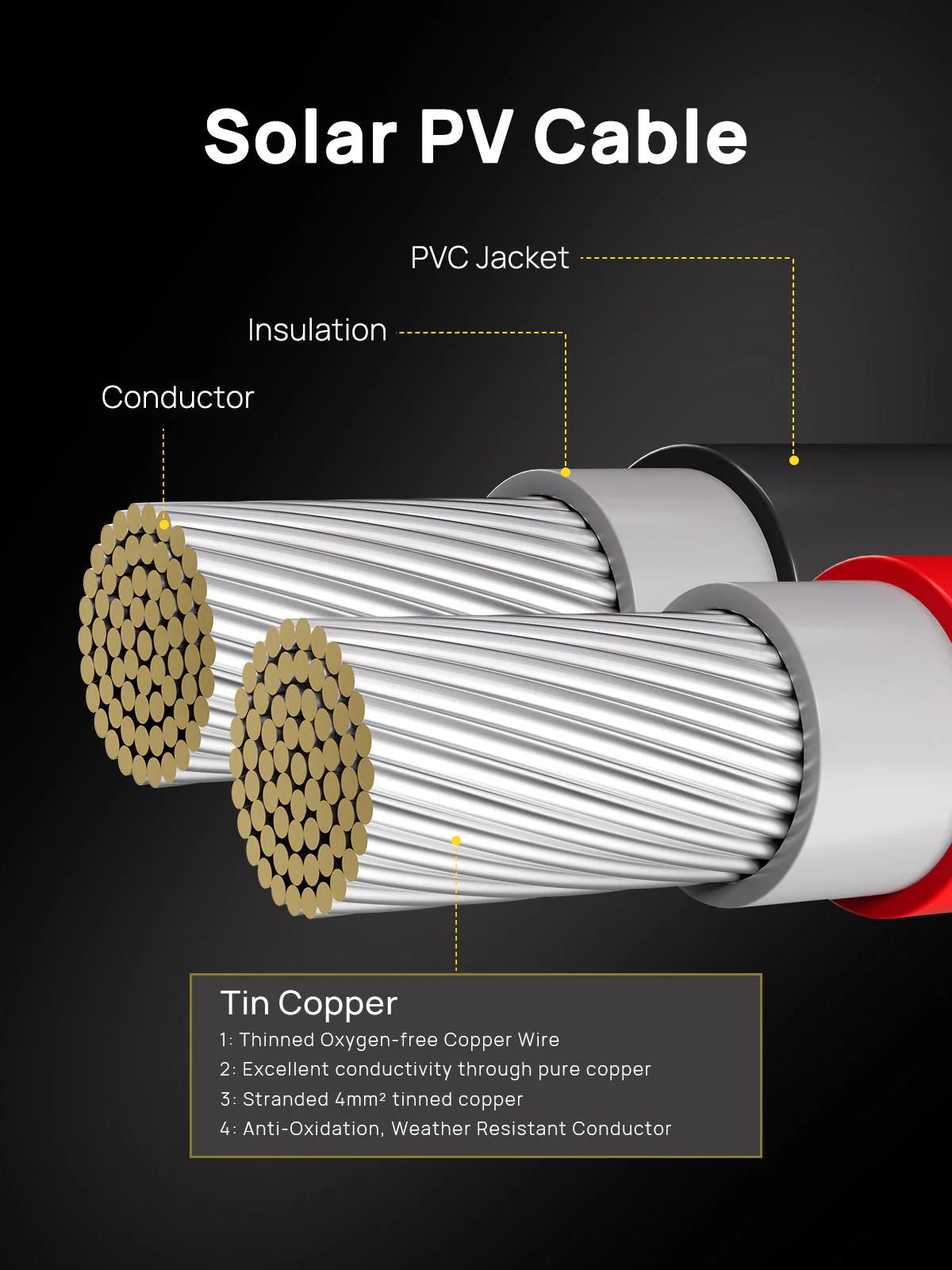

| Conductor | Stranded Tinned Copper |
| Wire Gauge | 12AWG(4mm²) |
| Rating Current | 30A |
| Rating Voltage | AC 0.6-1.0KV/DC1.8KV |
| Test Voltage | 6500V |

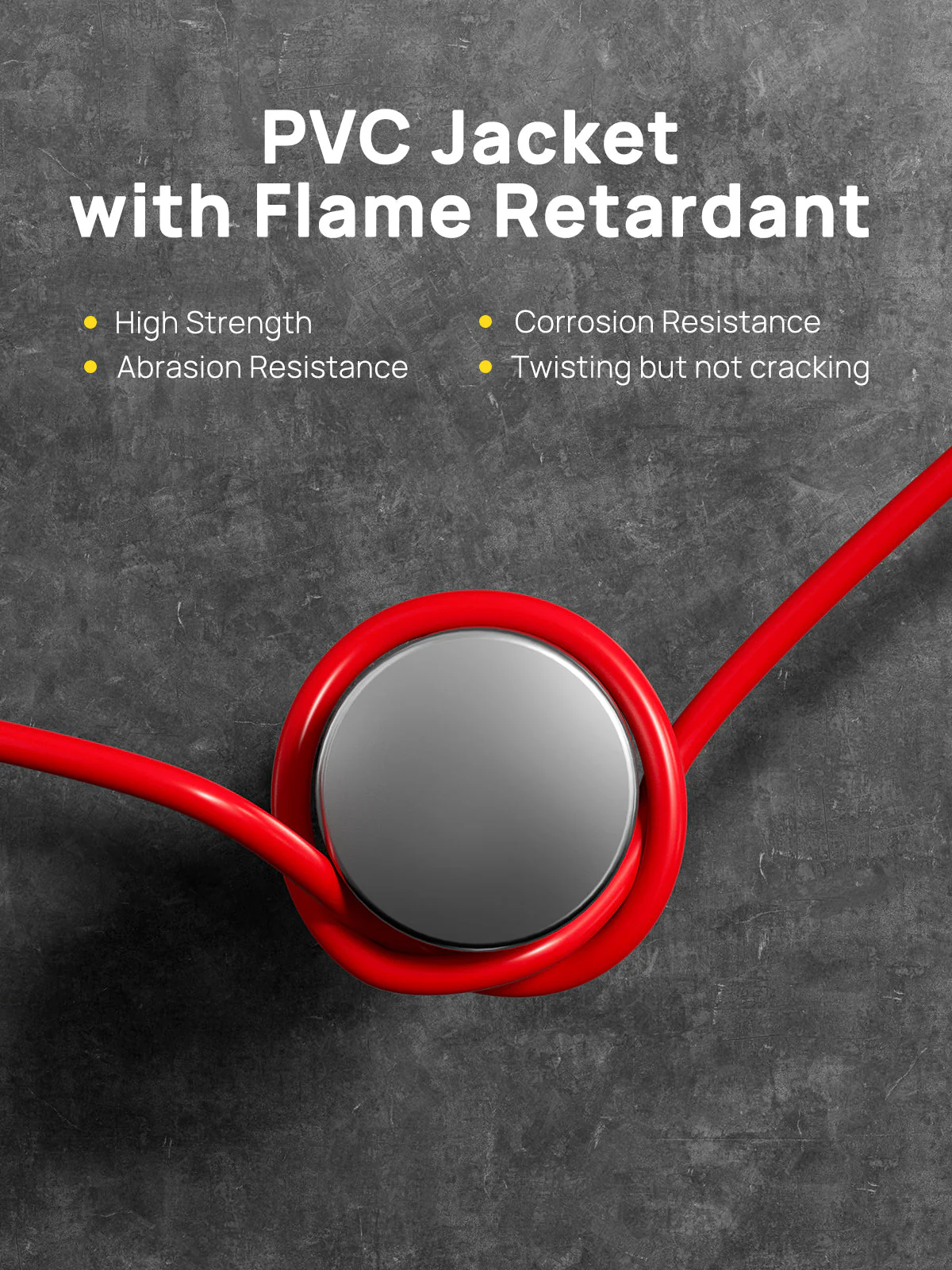

| Insulation Material | PVC with Flame Retardant |
| Short Circuit | +250°C |
| Weather Resistance | UV |
| Conductor Resistance | (20°℃) SS5.09Q/KM |
| Temperature Range | -40C+90°C |

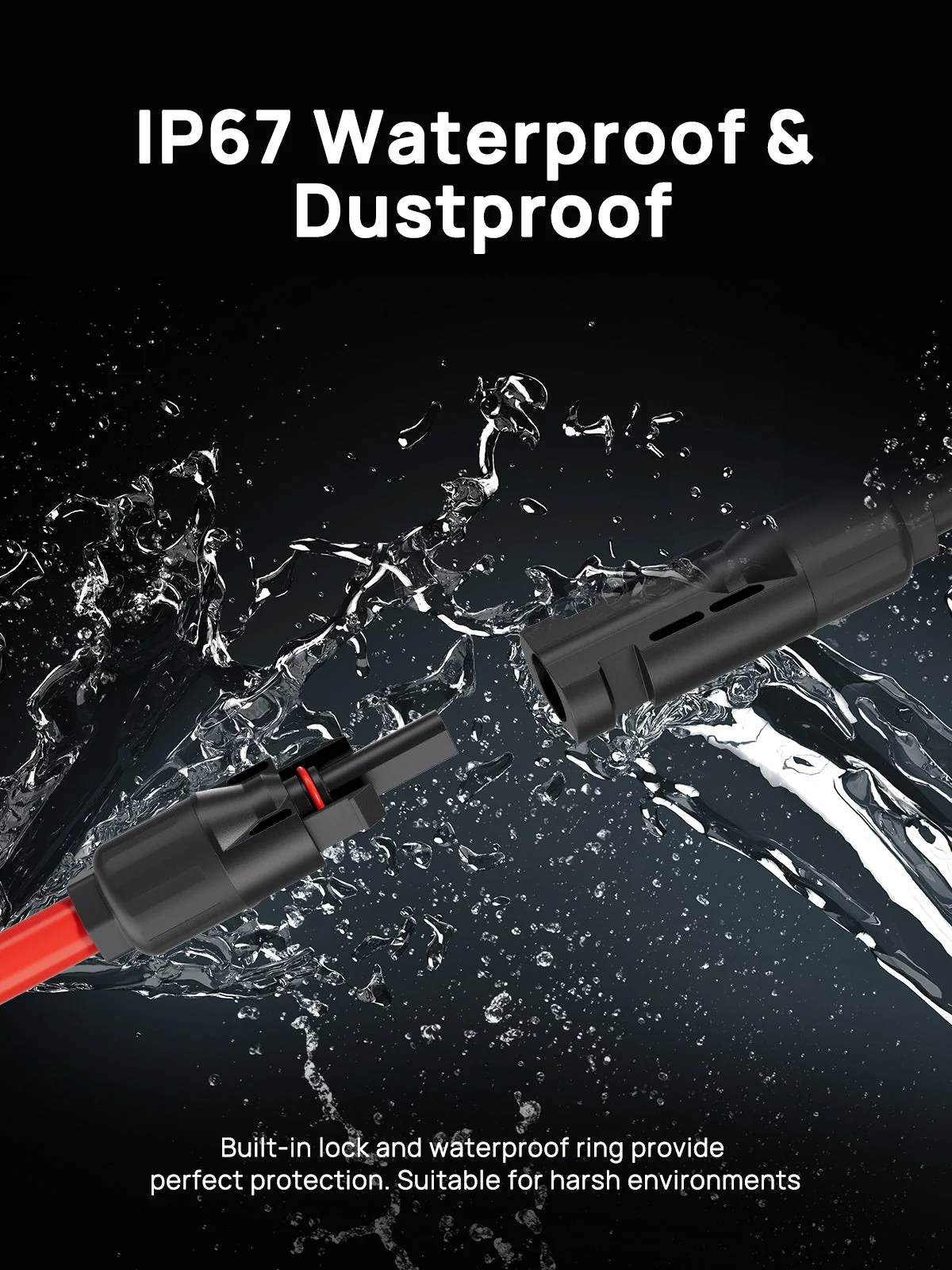

| Waterproof Level | IP67 |
| Service Life | 25 Years |
